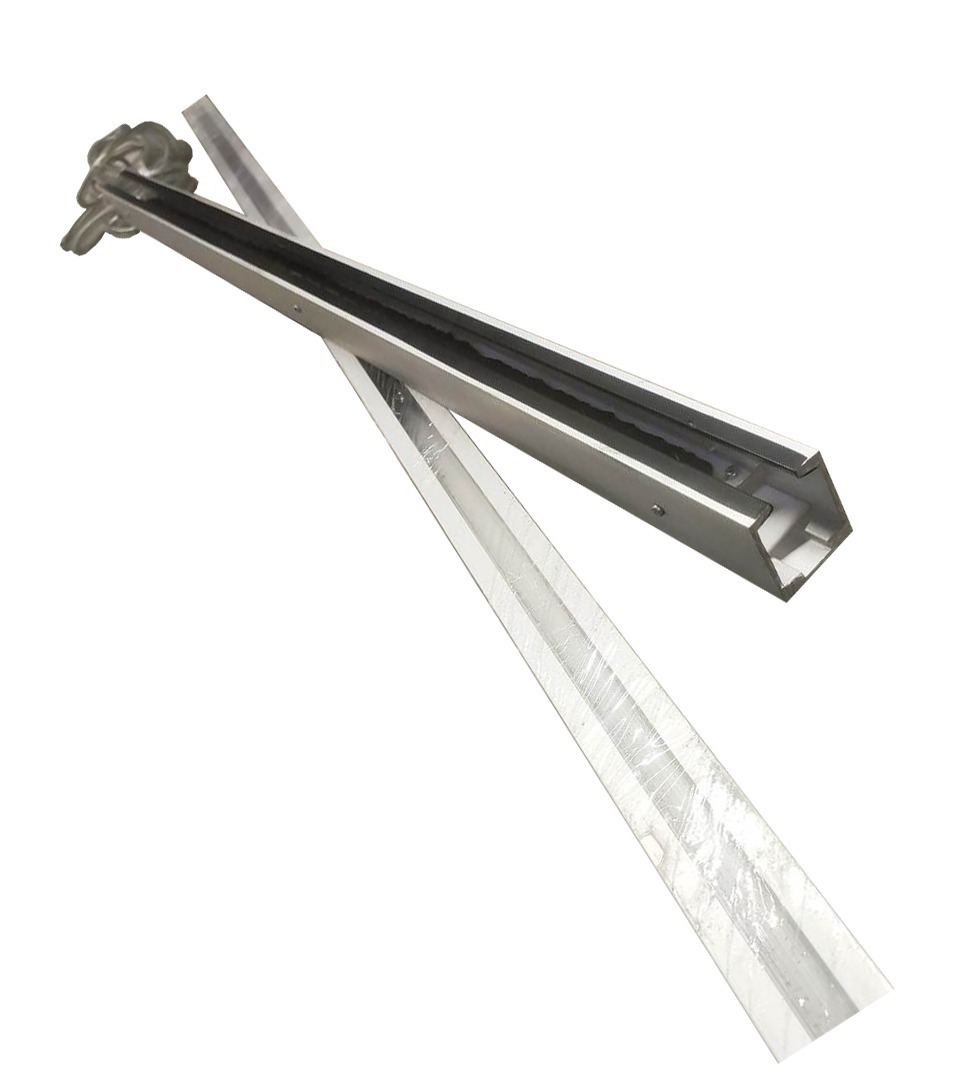

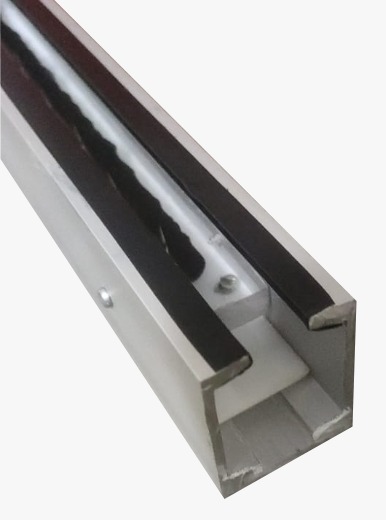

Construction - Anodized Aluminium, Polycarbonate Sheet, Hardened Emitters.
Dimensions - 35 x 40 mm (W x H).
Available Lengths - Any Length from 7 inches to 144 inches.
Safety - High resistance in emitters for shock less operation.
Ionizing Point Spacing - 3/4 to 1 inch on center

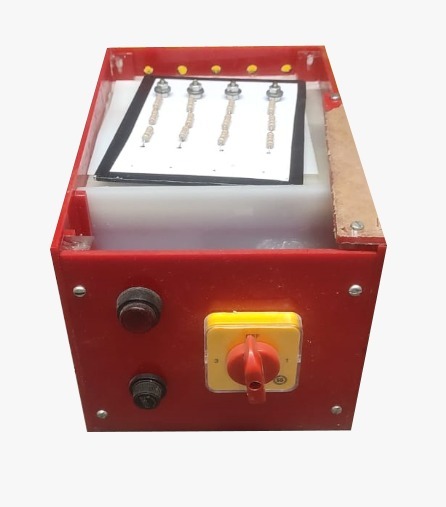

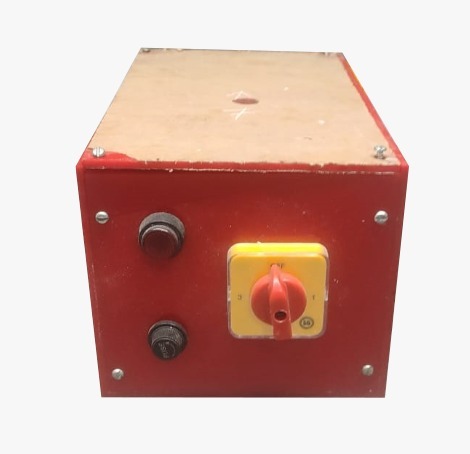

Power Unit - PBSS-SCE-111,must be positioned outside of the hazardous area.
Type - High Voltage, AC, Constant output transformer.
Input Voltage - 230V
Output Voltage - 7.5 KV
Input Current - 0.5 Amp
Output Current - 0.005 Amp Line
Dimensions: Width: 6.5 inches, Height: 5.75 inches, Length: 9.5 inches
Environmental - 40C maximum temperature. 70 % rH non-condensing max.
Location should be dry and oil-free.
It is widely used in electronics, plastics, chemicals, printing, textile, optical and other industries.
